介绍: TL431是一个有良好的热稳定性能的三端可调分流基准电压源。它的输出电压用两个电阻就可以任意地设置到从Vref（2.5V）到36V范围内的任何值。该器件的典型动态阻抗为0.2Ω，在很多应用中可以用它代替齐纳二极管，例如，数字电压表，运放电路、可调压电源，开关电源等等。
特点：
•可编程输出电压为36V
•电压参考误差：±0.4％ ，典型值@25℃（TL431B）
•低动态输出阻抗，典型0.22Ω
•负载电流能力1.0mA to 100mA
•等效全范围温度系数50 ppm/℃典型
• 温度补偿操作全额定工作温度范围
•低输出噪声电压
|

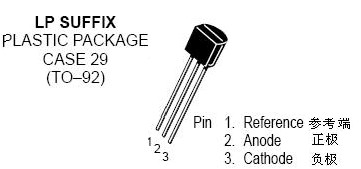

图1 TO92封装引脚图 |
|
|
图2 8脚封装引脚功能 |
|
|

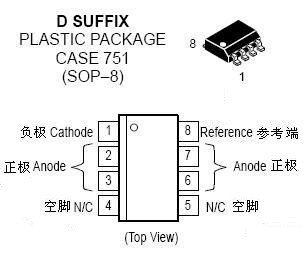

图3 SOP-8 贴片封装引脚图 |
|
|

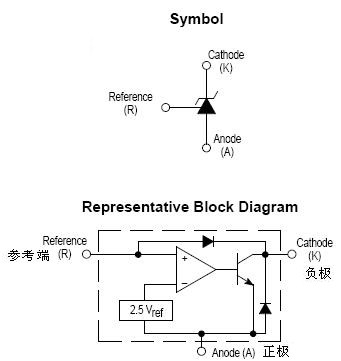

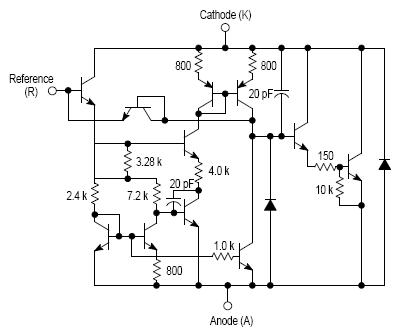

图4 TL431符号及内部方框图
|
otherwise noted.)最大额定值（环境温度范围适用，除非另有说明。 ）
|
Rating 参数 |
Symbol 符号 |
数值 |
Unit 单位 | |
|
Cathode to Anode Voltage阴极阳极电压 |
VKA |
37 |
V | |
|
Cathode Current Range, Continuous 阴极电流范围，连续 |
IK |
–100 to +150 |
mA | |
|
Reference Input Current Range, Continuous 参考输入电流范围，连续 |
Iref |
–0.05 to +10 |
mA | |
|
OperatingJunctionTemperature工作结温 |
TJ |
150 |
℃ | |
|
Operating Ambient Temperature Range 操作环境温度范围 |
TL431I,TL431AI, TL431BI | TA |
–40 to +85 |
℃ |
| TL431C, TL431AC, TL431BC | 0 to +70 | |||
|
StorageTemperature Range储存温度范围 |
Tstg |
–65 to +150 |
℃ | |
|
Total Power Dissipation总耗散功率 常温@ TA = 25℃ Derate above 25℃ Ambient Temperature |
D, LP后缀塑封 | PD | 0.70 | W |
| P后缀塑封 | 1.10 | |||
| DM 后缀塑封 | 0.52 | |||
|
Total Power Dissipation @ TC = 25℃ Derate above 25℃ Case Temperature 总耗散功率 外壳温度 |
D, LP后缀塑封 | PD |
1.5 |
W |
| P后缀塑封 | 3.0 | |||
RECOMMENDED OPERATING CONDITIONS建议操作条件
|
Condition 条件 |
Symbol 符号 | Min最大值 | Max最小值 | Unit 单位 |
|
Cathode to Anode Voltage 阴极阳极电压 |
VKA | Vref | 36 | V |
|
Cathode Current 阴极电流 |
IK | 1.0 | 100 | mA |
THERMAL CHARACTERISTICS热特性
| Characteristic 特性 |
Symbol 符号 |
D, LP后缀封装 | P后缀封装 | DM 后缀封装 | Unit 单位 |
| Thermal Resistance, Junction–to–Ambient 热阻，结点到环境 | RqJA | 178 | 114 | 240 | ℃/W |
| Thermal Resistance, Junction–to–Case 热阻，结到外壳 | RqJC | 83 | 41 | – | ℃/W |
ELECTRICAL CHARACTERISTICS(TA=25℃, unless otherwise noted.)电气特性（25℃ ，除非另有说明。）
| Characteristic 特性 |
Symbol 符号 |
TL431I | TL431C | Unit 单位 | |||||
| 最小值 | 典型值 | 最大值 | 最小值 | 典型值 | 最大值 | ||||
| Reference Input Voltage (Figure 1)参考输入电压 VKA = Vref, IK = 10 mA | TA = 25℃ | Vref | 2.44 | 2.495 | 2.55 | 2.44 | 2.495 | 2.55 | V |
| TA = Tlow to Thigh (Note 1) | 2.41 | – | 2.58 | 2.423 | – | 2.567 | |||
| Reference Input Voltage Deviation Over Temperature Range参考输入电压偏差温度范围 (Figure 1, Notes 1, 2) VKA= Vref, IK = 10 mA | DVref | – | 7.0 | 30 | – | 3.0 | 17 | mV | |
| Ratio of Change in Reference Input Voltage to Change in Cathode to Anode Voltage IK = 10 mA (Figure 2), | △VKA = 10 V to Vref | △Vref △VKA |
– | –1.4 | –2.7 | – | –1.4 | –2.7 | mV/V |
| △VKA=36V to 10 V | - | –1.0 | –2.0 | – | –1.0 | –2.0 | |||
| Reference Input Current (Figure 2) 参考输入电流IK = 10 mA, R1 = 10k, R2 = ∞ | TA = 25℃ | Iref | – | 1.8 | 4.0 | – | 1.8 | 4.0 | μA |
| TA = Tlow to Thigh (Note 1) | – | – | 6.5 | – | – | 5.2 | |||
| Reference Input Current Deviation Over Temperature Range参考输入电流偏差温度范围 (Figure 2, Note 1, 4) IK = 10 mA, R1 = 10 k, R2 = ∞ | DIref | – | 0.8 | 2.5 | – | 0.4 | 1.2 | μA | |
| Minimum Cathode Current For Regulation VKA = Vref (Figure 1) 最小阴极电流调节 | Imin | – | 0.5 | 1.0 | – | 0.5 | 1.0 | mA | |
| Off–State Cathode Current (Figure 3) VKA = 36 V, Vref = 0 V 断态阴极电流 | Ioff | – | 260 | 1000 | – | 260 | 1000 | nA | |
| Dynamic Impedance (Figure 1, Note 3)动态阻抗 VKA = Vref, DIK=1.0mA to 100mA f 3 1.0kHz | |ZKA| | – | 0.22 | 0.5 | – | 0.22 | 0.5 | Ω | |
ELECTRICAL CHARACTERISTICS (TA = 25℃, unless otherwise noted.)电气特性（25℃，除非另有说明。）
|
Characteristic 特性 |
TL431AI | TL431AC | TL431BI |
Unit 单位 |
||||||||||
| 最小值 | 典型值 | 最大值 | 最小值 | 典型值 | 最大值 | 最小值 | 典型值 | 最大值 | ||||||
| Reference Input Voltage (Figure 1)参考输入电压 VKA = Vref, IK = 10 mA | TA = 25℃ | Vref | 2.47 | 2.495 | 2.52 | 2.47 | 2.495 | 2.52 | 2.483 | 2.495 | 2.507 | V | ||
| TA = Tlow to Thigh | 2.44 | – | 2.55 | 2.453 | – | 2.537 | 2.475 | 2.495 | 2.515 | |||||
| Reference Input Voltage Deviation Over Temperature Range (Figure 1, Notes 1, 2) 参考输入电压偏差温度范围VKA= Vref, IK = 10 mA | DVref | – | 7.0 | 30 | – | 3.0 | 17 | – | 3.0 | 17 | mV | |||
| Ratio of Change in Reference Input Voltage to Change in Cathode to Anode Voltage IK = 10 mA (Figure 2), | △VKA = 10 V to Vref | △Vref △VKA |
– | –1.4 | –2.7 | – | –1.4 | –2.7 | – | –1.4 | –2.7 | mV/V | ||
| △VKA = 36 V to 10 V | – | –1.0 | –2.0 | – | –1.0 | –2.0 | – | –1.0 | –2.0 | |||||
| Reference Input Current (Figure 2)参考输入电流 IK = 10 mA, R1 = 10 k, R2 = ∞ | TA = 25℃ | Iref | – – | 1.8 | 4.0 | – | 1.8 | 4.0 | – | 1.1 | 2.0 | μA | ||
| TA = Tlow to Thigh (Note 1) | – | 6.5 | – | – | 5.2 | – | – | 4.0 | ||||||
| Reference Input Current Deviation Over Temperature Range (Figure 2, Note 1) IK = 10 mA, R1 = 10k, R2 = ∞ 参考输入电流偏差温度范围 | DIref | – | 0.8 | 2.5 | – | 0.4 | 1.2 | – | 0.8 | 2.5 | μA | |||
| Minimum Cathode Current For Regulation 最小阴极电流调节VKA = Vref (Figure 1) | Imin | – | 0.5 | 1.0 | – | 0.5 | 1.0 | – | 0.5 | 1.0 | mA | |||
| Off–State Cathode Current(Figure 3) 断态阴极电流VKA = 36V, Vref =0V | Ioff | – | 260 | 1000 | – | 260 | 1000 | – | 230 | 500 | nA | |||
| Dynamic Impedance (Figure 1, Note 3) VKA = Vref, DIK = 1.0 mA to 100 mA f 3 1.0 kHz 动态阻抗 | |ZKA| | – | 0.22 | 0.5 | – | 0.22 | 0.5 | – | 0.14 | 0.3 | Ω | |||
